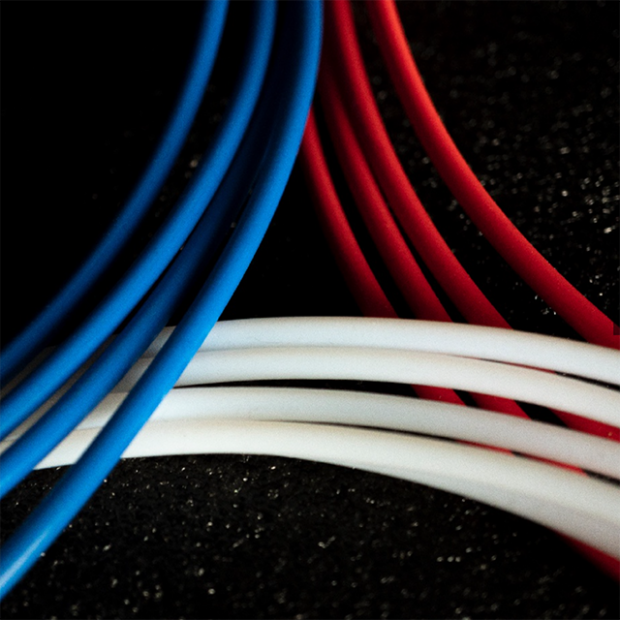

Teflon fireproof and flame-resistant wire
Flame-resistant and heat-resistant cable
With the progress of the times and the prosperity of the society, the number of modern high-rise buildings is increasing continuously, and countless people live in them every day. If the fire protection and safety equipment are not perfect, once a fire occurs, it will inevitably cause irreparable damage. Loss. the
In order to effectively protect the life and property of the public, modern buildings must have complete fire protection and safety equipment, such as power supply and transmission, program control, alarm, monitoring and communication systems, etc., all require a considerable number of cables as media, once a fire occurs , These cables must continue to maintain their original functions for a long time to maintain the normal operation of the equipment, in order to facilitate fire protection and safety work, so the cables must have special fire-resistant and heat-resistant characteristics.
Characteristics of FR and HR
Special fire resistance
The flame-resistant layer on the FR conductor has excellent flame resistance and insulation, and has obtained and complied with the following fire resistance tests. Obtained the certificate of 11359 orthographic mark, the type approval certificate of flame-resistant cable from the Fire Department, 950°C for 90 minutes, and 840°C for 30 minutes. the
Compatible with:
CNS 11174(Z2058) Flame Resistant Wire
Japan Fire Agency Notice No. 10 (840°C, 30 minutes)
IEC 331 (750 degrees C, 3 hours)
BS 6387 (950°C, 3 hours)
HR adopts XLPE insulator with special heat resistance, high stability and excellent electrical performance. It has obtained the fire department (heat-resistant wire and cable type approval certificate) and can meet the heat resistance test (380 ° C, 15 minutes ) and national standard CNS11175 heat resistance test (310°C, 15 minutes).
Teflon fireproof and flame-resistant wire
